Shurflo (Pentair) 166-296-28 Gas Pump (BIB Syrup dispense)

  • Sale
  • Regular price £85.00


Heavy Duty Acuator
  • Quick Disconnect Fittings
  • Straight Through Flow Path
  • Common Pump Found In Most Drinks Setups

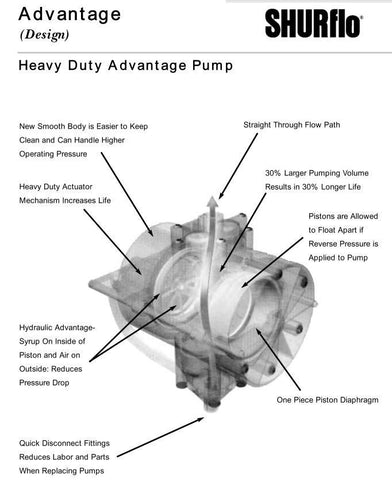

  • The SHURflo gas (CO2/air) driven diaphragm pump is designed for the dispensing of BIB syrups, wines, teas and juices. It utilises a technically proven twin chamber, positive displacement, straight through design to maximise performance by minimising pressure drop. The pump features automatic demand and automatic sold-out vacuum shut-off for ease of operation. The SHURflo gas pump is approved for use by all the leading soft drink manufacturers and is NSF and SK approved for water, beverages, (including alcohol), and condiments. DESIGN: Twin Chamber Double Diaphragm Materials of Construction: Polypropylene, EDPM, Santoprene, 300 Stainless Steel, FDA Sanctioned, NSF Listed, CE, S-K Power Source: CO2, Nitrogen, or compressed filtered air Maximum Stroke Rate: 2 strokes/sec, intermittent duty Displacement: 3.4 oz, per cycle (101 cc) Automatic Sold Out: 20-24‰ۡóÁÌ_? Hg (68-81 kPA) activation (wet). No reset required. High altitude models: 16-18‰ۡóÁÌ_? Hg. (54-61kPA) Temperature Limits: 34 degree-120 degrees F (1.1-49 degrees C) Weight: 1 lb (.45 kg) Available liquid fittings: 1/4" (6mm), 3/8" (10mm) and 1/2" (13mm) barb elbows, straights; and 90 degree configuration; plastic or stainless. John Guest straight tube; plastic. Available CO2/AIR/ EXHAUST: 1/4" (6mm) barb elbows or plastic or brass; with internal check valve
